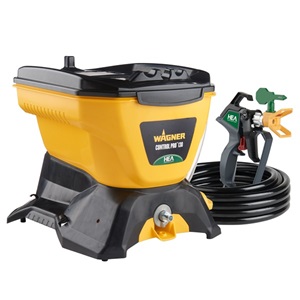

Control Pro 130 with T2 Gun Product Support

Please see below for helpful content to make sure you have a great experience

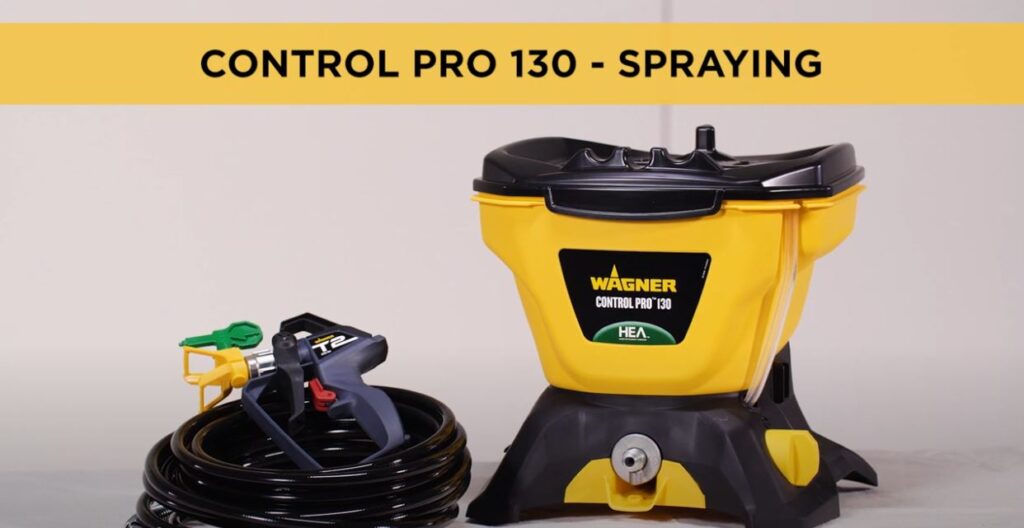

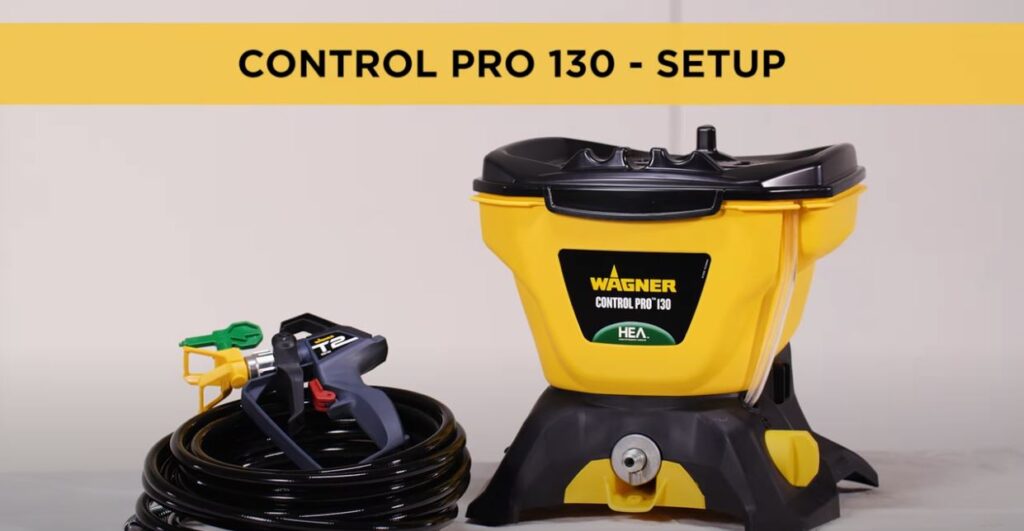

How-To Videos

Troubleshooting Videos

Charts & Guides

Material Compatibility

These materials are best suited for the Control Pro 130

Wood StainAcceptable Performance*
Semi-Transparent StainAcceptable Performance*
Solid StainIdeal Performance
Paint & PrimerIdeal Performance
* Smaller Tip Recommended

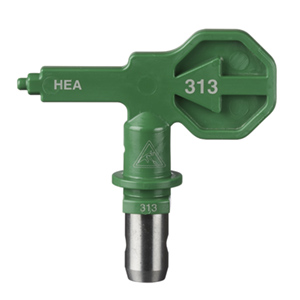

Tip Recommendation Chart

HEA Logog

Here are the High Efficiency Airless (HEA) tips you should use with your sprayer for various coatings and desired pattern width

Polyurethane, Water-Based Lacquer, Transparent Stain, Semi-Transparent Stain2114-6″
Polyurethane, Water-Based Lacquer, Semi-Transparent Stain, Solid Stain3136-8″
Solid Stain, Water and Oil-Based Paint & Primer51510-12″Included
The 517 and 619 for thicker materials are not compatible with the Control Pro 130.

Spray Pattern Guide

TailingHEA Tailing Spray PatternNeed a larger tip size. If you are already using the largest tip size compatible with the Control Pro 130 (515 tip), you can try to thin the material. For water-based material, use water or Wagner Paint Easy. For oil-based material, use mineral spirits. Always follow the manufacturer’s recommendations for thinning.

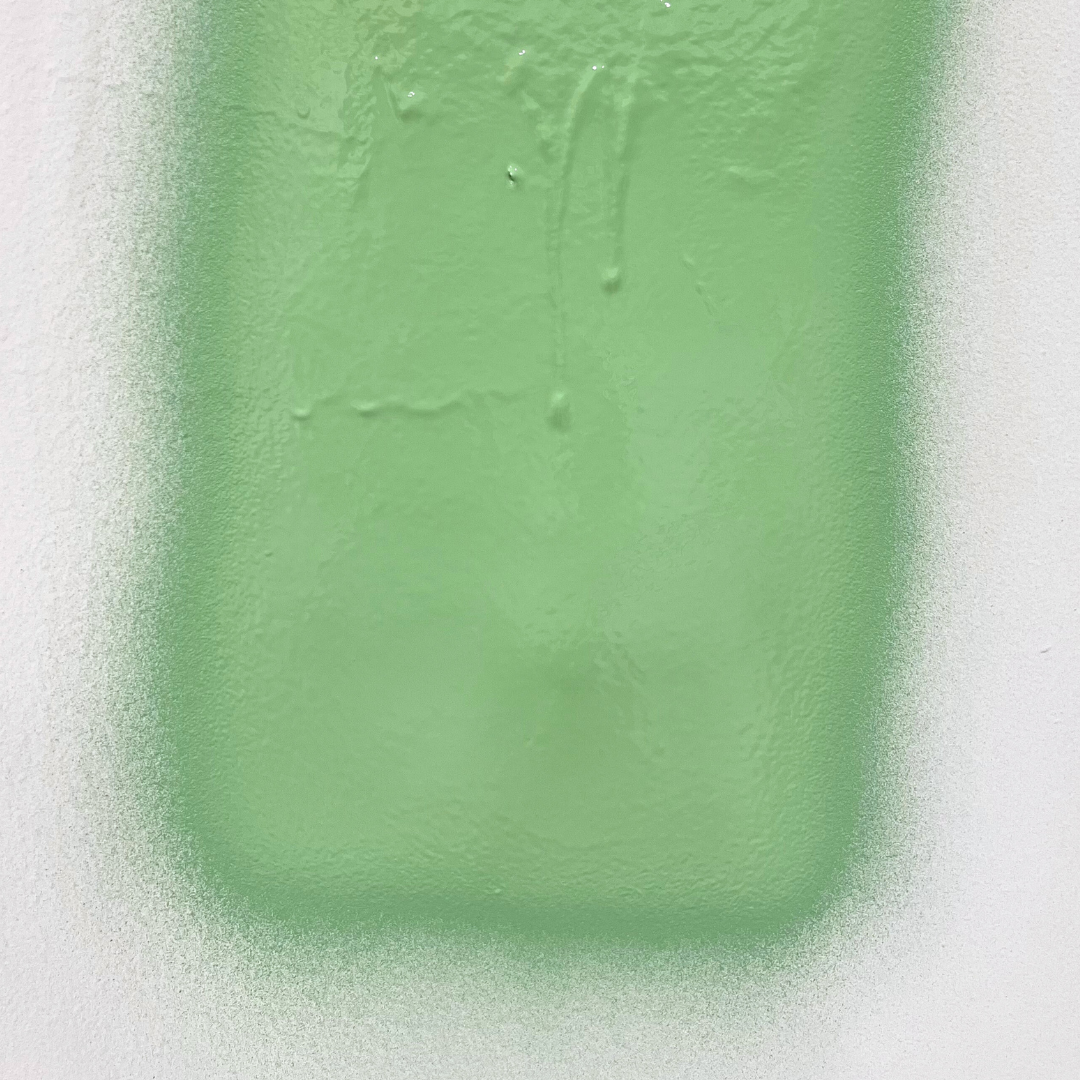

Runs & SagsHEA Runs and Sags Spray PatternSpray gun is too close to the surface. Take a step back and hold it about 10-12″ away.Moving too slow. Move faster while remaining steady.
Overspray & Poor CoverageHEA Poor Coverage Spray PatternSpray gun is too far from the surface. Take a step closer and hold it about 10-12″ away.Moving too fast. Move slower while remaining steady.

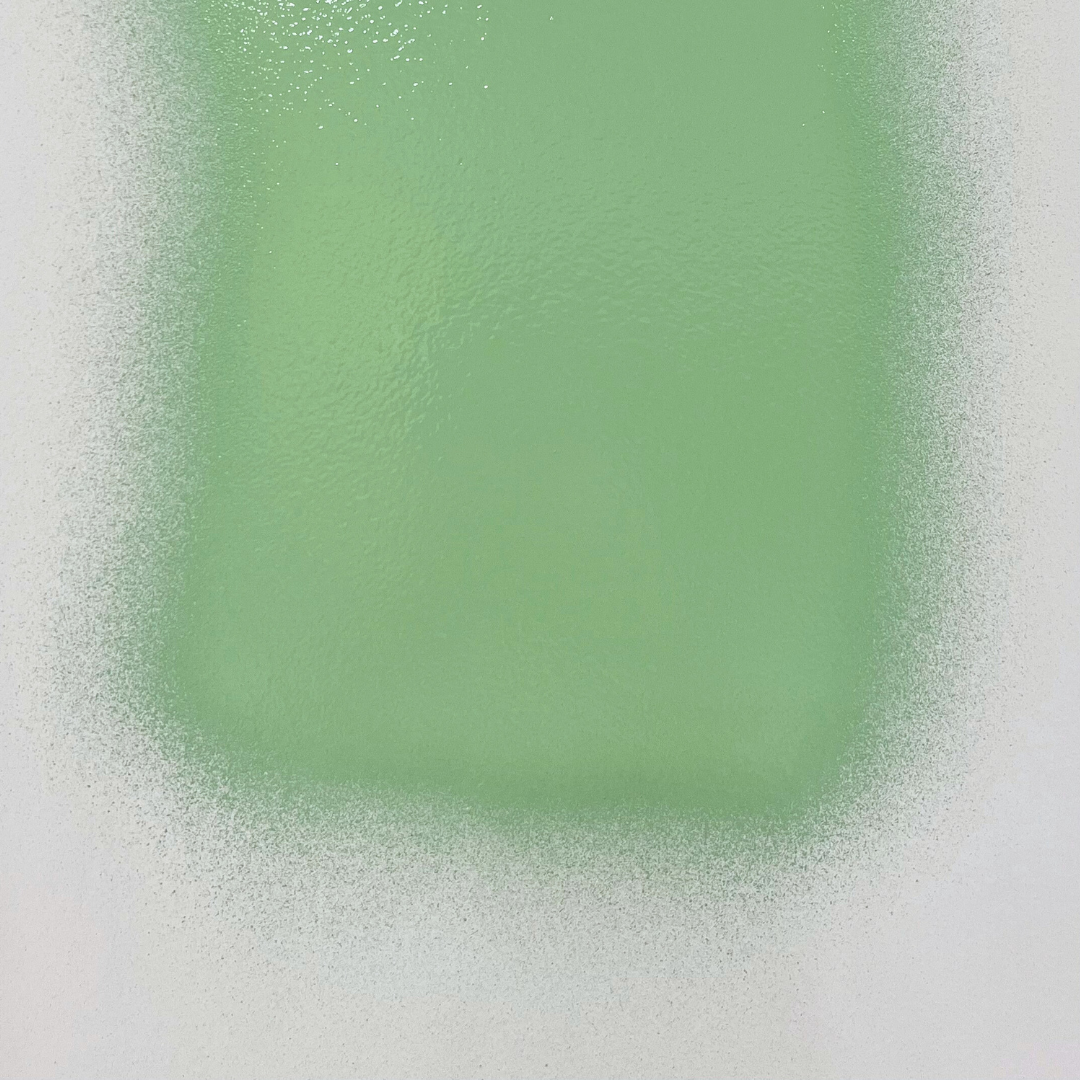

Good Spray PatternHEA Good Spray PatternPressure is well balanced, spray gun is 10-12″ away from the surface and is moving at a steady speed.
