Bedroom Makeover with a Paint Sprayer

Bedroom Makeover with a Paint Sprayer

Learn how to paint a room in your home quickly and easily using a Wagner FLEXiO paint sprayer for the walls and receive a great finish!
Difficulty
Beginner
Project Type
Indoor
Product
Flexio 5000 Sprayer

Want to see this project in action?

Overview

Are you looking to paint a room in your home quickly and easily? Learn how to use the Wagner FLEXiO 5000 paint sprayer for walls and how knock your room out in under an hour!

Before


After


Instructions

messy bedroom that needs new paint

Prepare the Room for Paint

Start by cleaning the room. Clear as much of the furniture and belongings as you can. Give the room a quick cleaning by sweeping and dusting – this includes the walls and baseboards!

Step 1

masking 1

Tape Off the Room

Just like if you using a brush and roller, you want to tape off where you do not want paint! Because you will be spraying the paint on, you also want to cover the floors, windows, and doors to protect from overspray. Tape off your ceiling as well and cover at least 24 inches in.

Step 2

tap off the room, plastic rapping around door to protect from paint

Load the Paint

Pour paint directly into the canister! No need to thin latex paint! To help with cleanup, you can use a spray cup liner.

Step 3

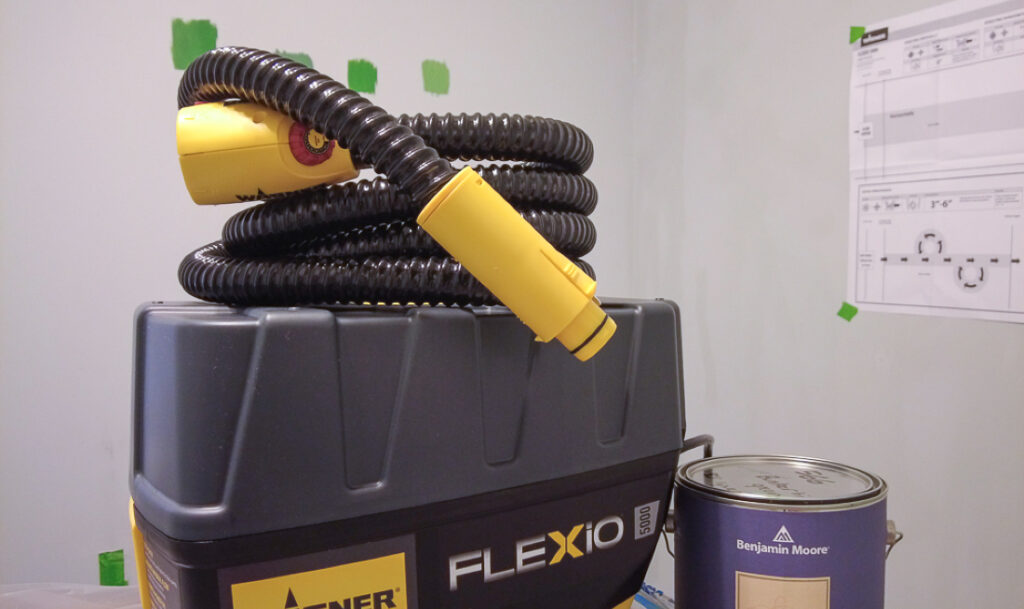

Flexio 5000 with the hose coiled up on top of the stationary part of the unit

Assemble the FLEXiO 5000

To assemble, first remove the air hose from the storage case and plug in on the front of the case.

Step 4

wagner yellow background 3000 x 3000 2

Assemble the Nozzle

Insert the paint pickup tube into the intake opening on the nozzle. Carefully reassemble by screwing the cup back on and tighten firmly. Once reassembled, screw the nozzle into the handle.

Step 5

wagner yellow background 3000 x 3000 2

Adjust the Power and Material Controls

Since we are using paint straight from the can (unthinned) we need to set the X-Boost™ power dial (adjusts the level of air pressure produced by the turbine) at a high setting. Next, adjust the material flow (the amount of paint that being sprayed from the gun).

Step 6

Flexio 5000 paint sprayer for detailing, indoor and outdoor use

Adjust Spray Pattern

Depending if spraying vertically or horizontally, turn the cap on the front of the gun. The gun also has a spray width lever to adjust the width.

Step 7

bedroom dresser covered in plastic to protect from paint. The room is almost complete being painted an all new green color

Turn on and Practice

Turn the power on the Power Box ON then turn the power switch on the handle ON. Use the included spray poster for practice!

Step 8

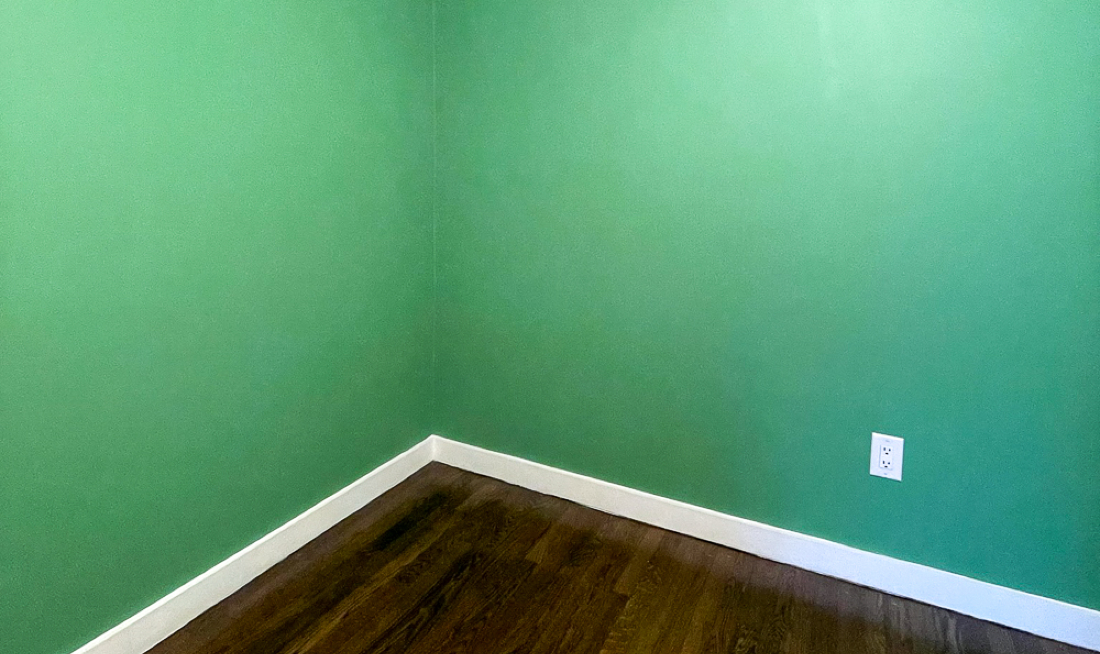

finished and painted bedroom walls, green, smooth paint finish

Paint Your Walls!

Paint by keeping the nozzle 6-8 inches from the wall. Move at the same speed and keep the nozzle the same distance from the wall. Start just past where your wall starts, so either on the floor or ceiling. Move straight up and down then overlap the next pass by at least 50%. This will ensure you get full coverage painting the wall!

This sponsored post was created by Amber Oliver. Head to the blog for the full post and details.

Step 9
