505e Handheld Steamer Product Support
Helpful Videos
Displaying slide

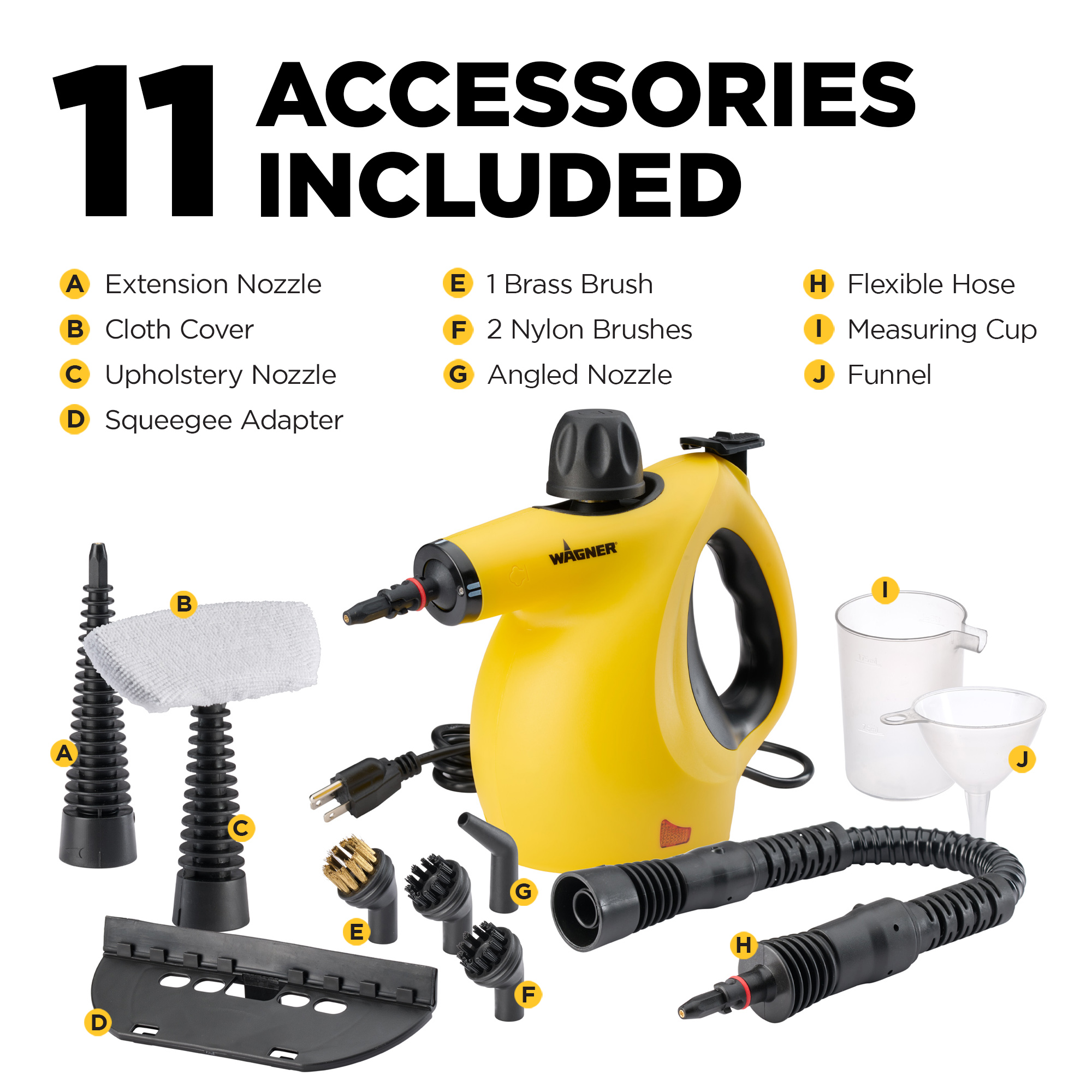

of 2 Accessory Guide

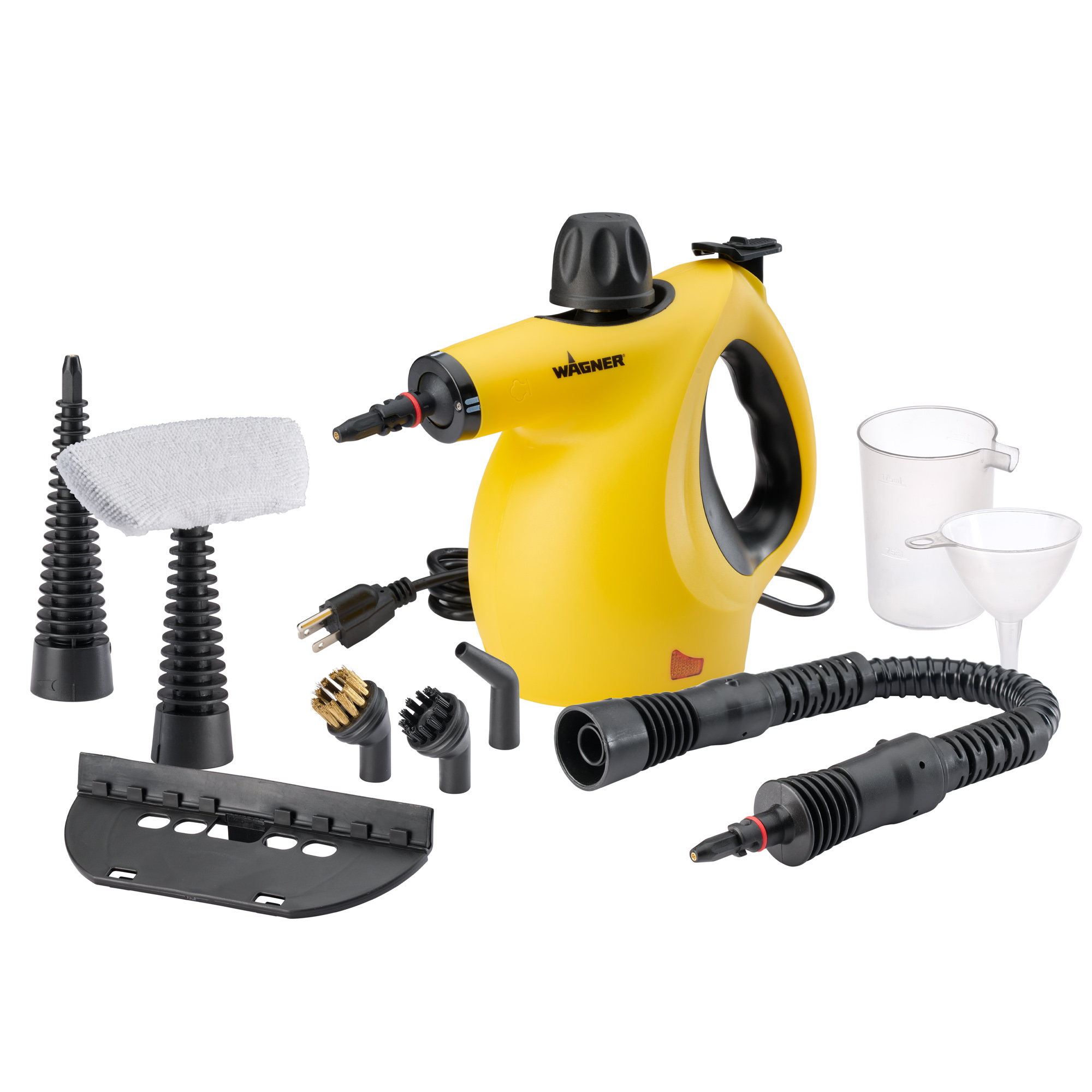

There are a variety of areas around your home that you can steam with your 505e Steamer. Check out the included accessories below and ways to use them.

ACCESSORY | USE |
---|---|
A. Extension Nozzle | Achieve extended reach |
B. Cloth Cover | Wraps around upholstery nozzle |
C. Upholstery Nozzle | Attach the cloth cover to steam fabric car seats, upholstery, remove wrinkles from clothing and curtains or kill dust mites in mattresses |
D. Squeegee Adapter | Windows (home and auto), glass shower doors, shower walls, fireplace doors, etc.** |
E. Brass Brush | Scrub and remove grease and grime found on grills and ovens |
F. Nylon Brushes | Scrub faucets, sinks and grout |
G. Angled Nozzle | Kitchen/bathroom sinks, other fixtures and hard to reach places |
H. Flexible Hose | Get into hard to reach places with extended reach. |
I. Measuring Cup | Measure how much distilled water you put in the steamer (tank holds up to 40 oz) |
J. Funnel | Remove the black cap and place the fill funnel inside to easily fill the steamer tank with distilled water |
Steam Time Chart
AMOUNT OF WATER* | DURATION OF STEAM |
---|---|
8 oz / 250ml | Approx. 15 minutes |
Attaching the Accessories

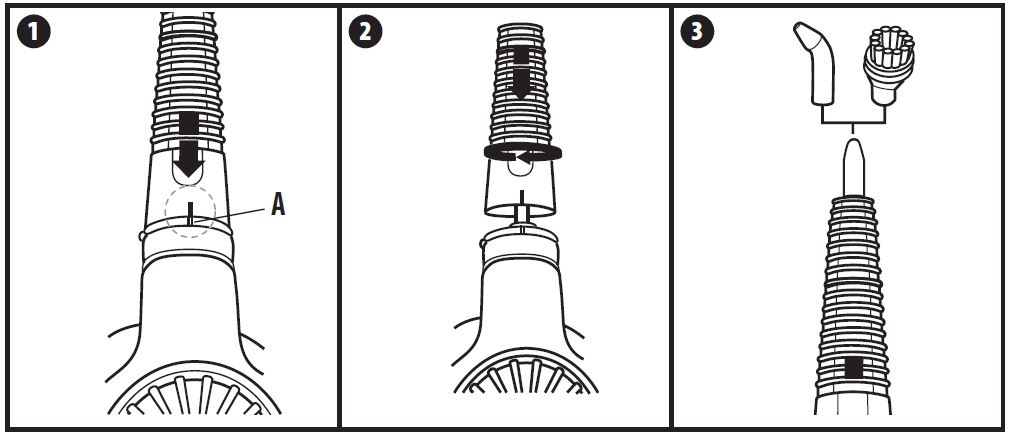

Installing the Long Nozzles
- Hold the pipe section of the extension nozzle/upholstery nozzle in your hand.
- Align the arrow on the accessory with the single line mark on the short spray nozzle on the steamer.
- Insert the nozzle into position.
- Rotate the accessory in clockwise direction
- Align the arrow on the accessory with the double-line mark (A) on the steamer, as
Removing the Long Nozzles
- Rotate the accessory counterclockwise as show in figure 2
- Align the arrow on the accessory with the single-line mark on the main unit
- The accessory can now be pulled out.
Installing the Short Accessories
- Align the round brush or angled nozzle at the top of the steam nozzle, as show in figure 3
- Push the accessory onto the extension nozzle unit it is in position
- As the round brush or angled nozzle are positioned in six directions, the angle and direction can be adjusted during the installation.
