Charts & Guides
Material Compatibility
These material are best suited for the Control Spray Lite Duty
| MATERIAL | COMPATIBILITY |
|---|---|
| Wood Stain | Ideal Performance |
| Semi-Transparent Stain | Ideal Performance |
| Solid Stain | Not Recommended |
| Paint & Primer | Not Recommended |
Spray Technique
Air Cap Position for Spray Patterns
Adjust the position of the air cap on the nozzle to change the spray pattern to your desired position

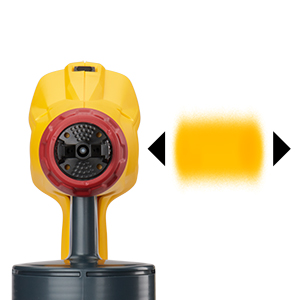

Horizontal Spray Pattern
Vertical Spray Pattern

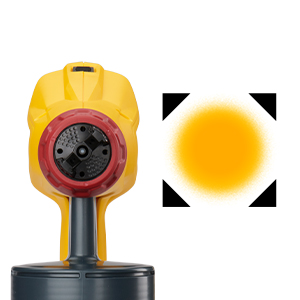

Round Spray Pattern
Spraying Techniques
Distance From Surface
Position spray gun perpendicular to and 6-8″ from the surface
Overlap Each Pass
When spraying large surfaces, overlap each pass by at least 50%.
Correct Spray Technique
Spray with smooth passes at a consistent speed. Do not flex wrist when spraying
